HIGRACE supplies marine anchoring and docking hardware, including anchors, chains, deck fittings, and mooring hardware, for distributors, boat builders, and marine hardware importers.
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Length (mm) | Width (mm) | Opening (mm) |
| 171003 | 3.5 | 36.5 | 17 | 5 |
| 171004 | 4 | 40 | 19.5 | 5.5 |
| 171005 | 5 | 49 | 23 | 6.5 |
| 171006 | 6 | 58 | 26.5 | 7.5 |
| 171007 | 7 | 65 | 30.5 | 8.5 |
| 171008 | 8 | 75 | 33.5 | 10.5 |
| 171009 | 9 | 82 | 35 | 11.5 |
| 171010 | 10 | 90 | 40.5 | 12.5 |
| 171012 | 12 | 107 | 47.5 | 14.5 |
steel, Elec. Galv.
| Number | Size (mm) | Length (mm) | Width (mm) | Opening (mm) |
| 171603 | 3.5 | 36.5 | 17 | 5 |
| 171604 | 4 | 40 | 19.5 | 5.5 |
| 171605 | 5 | 49 | 23 | 6.5 |
| 171606 | 6 | 58 | 26.5 | 7.5 |
| 171607 | 7 | 65 | 30.5 | 8.5 |
| 171608 | 8 | 75 | 33.5 | 10.5 |
| 171609 | 9 | 82 | 35 | 11.5 |
| 171610 | 10 | 90 | 40.5 | 12.5 |
| 171612 | 12 | 107 | 47.5 | 14.5 |
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Width (mm) | Length (mm) |
| 173005 | 5 | 19.5 | 30 |
| 173006 | 6 | 25 | 35 |
| 173008 | 8 | 29 | 42 |
| 173010 | 10 | 35 | 53 |
| 173011 | 11 | 41 | 59 |
| 173013 | 13 | 43 | 68 |
| 173016 | 16 | 57 | 82 |
| 173019 | 19 | 67 | 92 |
| 173022 | 22 | 75 | 107 |
| 173025 | 25 | 86 | 119 |
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Length (mm) | Width (mm) |
| 174005 | 5 | 30 | 18 |
| 174006 | 6 | 36 | 24 |
| 174008 | 8 | 48 | 30 |
| 174010 | 10 | 60 | 37 |
| 174012 | 12 | 66 | 41 |
| 174013 | 13 | 78 | 48 |
| 174016 | 16 | 96 | 59 |
| 174019 | 19 | 114 | 70 |
| 174022 | 22 | 132 | 78 |
| 174025 | 25 | 150 | 87 |
| 174028 | 28 | 168 | 100 |
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) |
| 173503 | 3 | 16.5 | 6.5 |
| 173504 | 4 | 20 | 8 |
| 173505 | 5 | 23 | 9.5 |
| 173506 | 6 | 29 | 10.5 |
| 173507 | 7 | 32 | 13.5 |
| 173508 | 8 | 37 | 15 |
| 173509 | 9 | 37.5 | 16.5 |
Elec Galv.
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) |
| 173603 | 3 | 16.5 | 6.5 |
| 173604 | 4 | 20 | 8 |
| 173605 | 5 | 23 | 9.5 |
| 173606 | 6 | 29 | 10.5 |
| 173607 | 7 | 32 | 13.5 |
| 173608 | 8 | 37 | 15 |
| 173610 | 10 | 37.5 | 16.5 |
| 173612 | 12 | 39 | 18 |

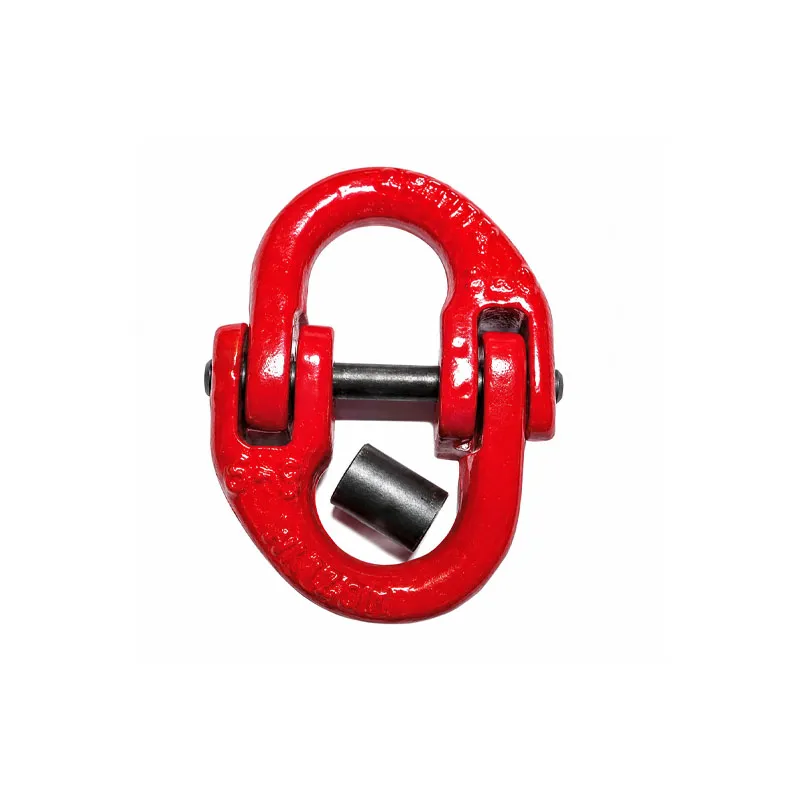

Grade 80, painted red Breaking load = 4 x working load
| Number | Size (mm) | Safe Working Load (ton) |
| 273006 | 6-8 | 1.6 |
| 273008 | 7/8-8 | 2.0 |
| 273010 | 10-8 | 3.2 |
| 273013 | 13-8 | 5.4 |
| 273016 | 16-8 | 8.2 |
| 273020 | 18/20-8 | 12.5 |
| 273022 | 22-8 | 15.25 |
| 273026 | 26-8 | 21.25 |

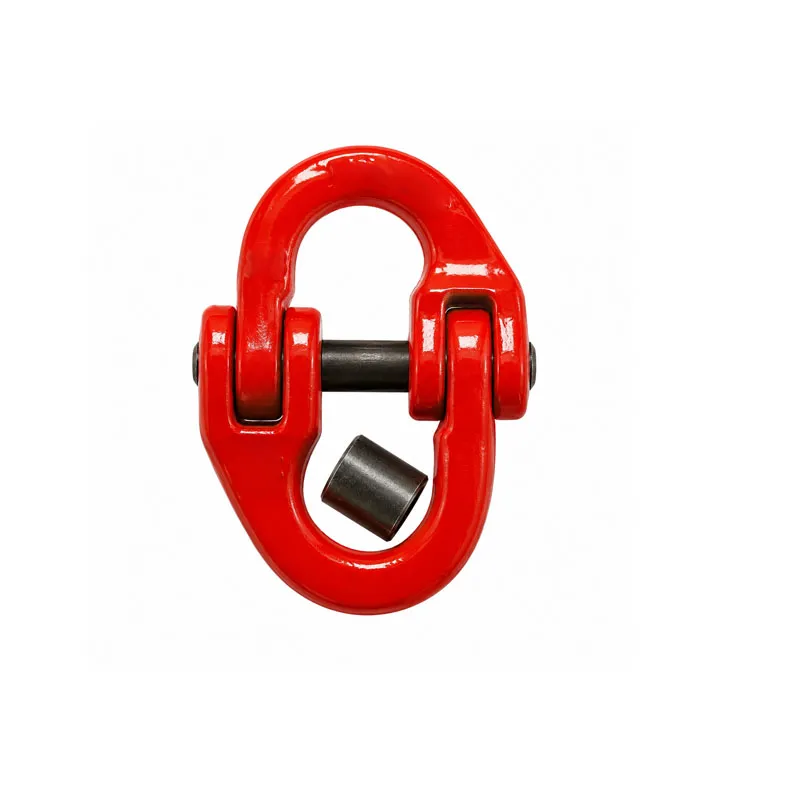

painted red Breaking load = 4 x working load
| Number | Size for Chain (in) | Safe Working Load (lbs) |
| 274006 | 1/4 | 4100 |
| 274010 | 3/8 | 7300 |
| 274012 | 1/2 | 13000 |
| 274016 | 5/8 | 20300 |
| 274019 | 3/4 | 29300 |
| 274022 | 7/8 | 39900 |
| 274025 | 1 | 52100 |
| 274032 | 1-1/4 | 81400 |
Find more HIGRACE stainless steel hardware solutions to complete your marine, rigging, fastening, and industrial sourcing needs.
