HIGRACE supplies marine anchoring and docking hardware, including anchors, chains, deck fittings, and mooring hardware, for distributors, boat builders, and marine hardware importers.

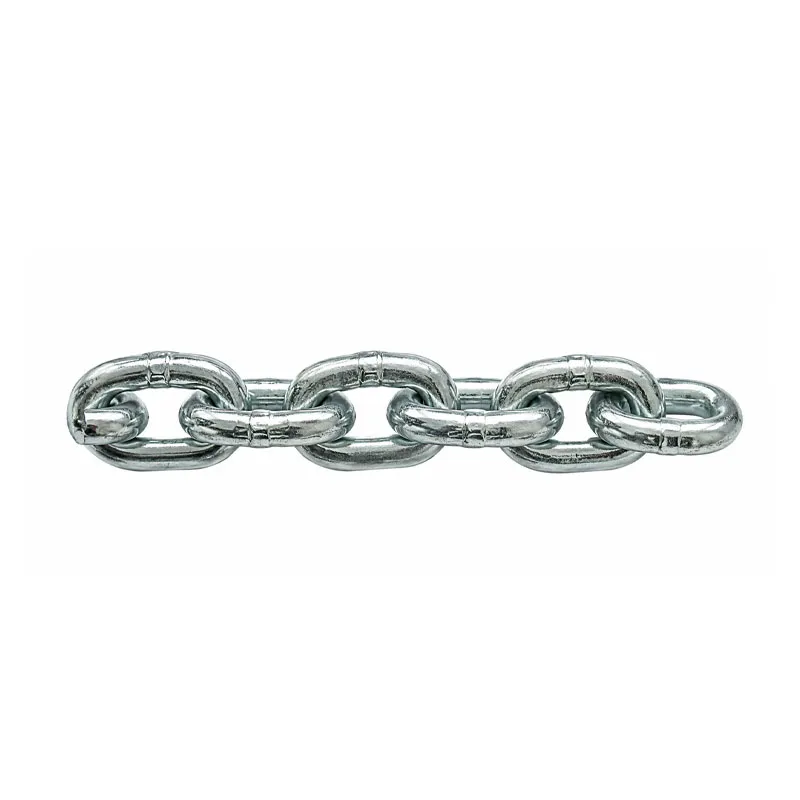

marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) | Safe Working Load (kg) |
| 201002 | 2 | 12 | 4 | 40 |
| 201003 | 3 | 16 | 4.2 | 80 |
| 201004 | 4 | 16 | 5 | 150 |
| 201005 | 5 | 18.5 | 6 | 250 |
| 201006 | 6 | 18.5 | 7.2 | 350 |
| 201008 | 8 | 24 | 9.6 | 630 |
| 201010 | 10 | 28 | 12 | 850 |
| 201012 | 12 | 36 | 14.4 | 1,120 |
| 201013 | 13 | 36 | 15.6 | 1,600 |
| 201016 | 16 | 45 | 19.2 | 2,500 |

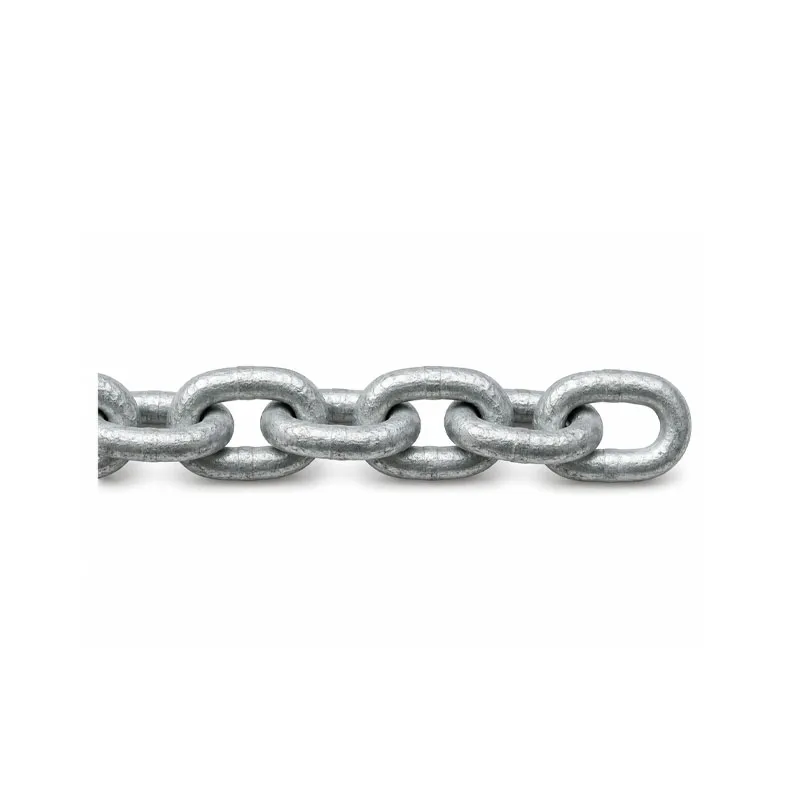

steel, H.D.G. available for electric galvanized chain
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) | Safe Working Load (kg) |
| 201803 | 3 | 16 | 4.2 | 80 |
| 201804 | 4 | 16 | 5 | 150 |
| 201805 | 5 | 18.5 | 6 | 250 |
| 201806 | 6 | 18.5 | 7.2 | 350 |
| 201808 | 8 | 24 | 9.6 | 630 |
| 201810 | 10 | 28 | 12 | 850 |
| 201812 | 12 | 36 | 14.4 | 1,120 |
| 201813 | 13 | 36 | 15.6 | 1,600 |
| 201816 | 16 | 45 | 19.2 | 2,500 |
| 201818 | 18 | 50 | 21.6 | 3,150 |
| 201820 | 20 | 56 | 24.0 | 4,000 |
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) | Length per 11 Links (mm) |
| 202003 | 3 | 16 | 4.2 | 176 |
| 202004 | 4 | 16 | 5 | 176 |
| 202005 | 5 | 18.5 | 6 | 203.5 |
| 202006 | 6 | 18.5 | 7.2 | 203.5 |
| 202007 | 7 | 22 | 8.4 | 242 |
| 202008 | 8 | 24 | 9.6 | 264 |
| 202010 | 10 | 28 | 12 | 308 |
| 202012 | 12 | 36 | 14.4 | 396 |
| 202013 | 13 | 36 | 15.6 | 396 |
| 202016 | 16 | 45 | 19.2 | 495 |
steel, H.D.G.
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) | Length per 11 Links (mm) |
| 202803 | 3 | 16 | 4.2 | 176 |
| 202804 | 4 | 16 | 5 | 176 |
| 202805 | 5 | 18.5 | 6 | 203.5 |
| 202806 | 6 | 18.5 | 7.2 | 203.5 |
| 202807 | 7 | 22 | 8.4 | 242 |
| 202808 | 8 | 24 | 9.6 | 264 |
| 202810 | 10 | 28 | 12 | 308 |
| 202812 | 12 | 36 | 14.4 | 396 |
| 202813 | 13 | 36 | 15.6 | 396 |
| 202816 | 16 | 45 | 19.2 | 495 |
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Inner Length (mm) | Outer Width (mm) | Safe Working Load (kg) |
| 203002 | 2 | 22 | 8 | 30 |
| 203003 | 3 | 26 | 12 | 55 |
| 203004 | 4 | 32 | 16 | 100 |
| 203005 | 5 | 35 | 20 | 160 |
| 203006 | 6 | 42 | 24 | 225 |
| 203008 | 8 | 52 | 32 | 400 |
| 203010 | 10 | 65 | 40 | 630 |
| 203012 | 12 | 78 | 48 | 940 |
| 203013 | 13 | 82 | 52 | 1,000 |
| 203016 | 16 | 100 | 64 | 1,600 |
steel, H.D.G. available for electric galvanized chain
| Number | Size (mm) | Inner Length (mm) | Outer Width (mm) | Safe Working Load (kg) |
| 203803 | 3 | 26 | 12 | 55 |
| 203804 | 4 | 32 | 16 | 100 |
| 203805 | 5 | 35 | 20 | 160 |
| 203806 | 6 | 42 | 24 | 225 |
| 203808 | 8 | 52 | 32 | 400 |
| 203810 | 10 | 65 | 40 | 630 |
| 203812 | 12 | 78 | 48 | 940 |
| 203813 | 13 | 82 | 52 | 1,000 |
| 203816 | 16 | 100 | 64 | 1,600 |
| 203818 | 18 | 113 | 70 | 2,120 |
| 203820 | 20 | 120 | 75 | 2,500 |
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) | Safe Working Load (kg) |
| 204002 | 2 | 12 | 4 | 40 |
| 204003 | 3 | 16 | 4.2 | 80 |
| 204004 | 4 | 16 | 5 | 150 |
| 204005 | 5 | 18.5 | 6 | 250 |
| 204006 | 6 | 18.5 | 7.2 | 350 |
| 204008 | 8 | 24 | 9.6 | 630 |
| 204010 | 10 | 28 | 12 | 850 |
| 204012 | 12 | 36 | 14.4 | 1,120 |
| 204013 | 13 | 36 | 15.6 | 1,600 |
| 204016 | 16 | 45 | 19.2 | 2,500 |
steel, H.D.G. available for electric galvanized chain
| Number | Size (mm) | Inner Length (mm) | Inner Width (mm) | Safe Working Load (kg) |
| 204803 | 3 | 16 | 4.2 | 80 |
| 204804 | 4 | 16 | 5 | 150 |
| 204805 | 5 | 18.5 | 6 | 250 |
| 204806 | 6 | 18.5 | 7.2 | 350 |
| 204808 | 8 | 24 | 9.6 | 630 |
| 204810 | 10 | 28 | 12 | 850 |
| 204812 | 12 | 36 | 14.4 | 1,120 |
| 204813 | 13 | 36 | 15.6 | 1,600 |
| 204816 | 16 | 45 | 19.2 | 2,500 |
marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316
| Number | Size (mm) | Inner Length (mm) | Outer Width (mm) | Safe Working Load (kg) |
| 205002 | 2 | 22 | 8 | 30 |
| 205003 | 3 | 26 | 12 | 55 |
| 205004 | 4 | 32 | 16 | 100 |
| 205005 | 5 | 35 | 20 | 160 |
| 205006 | 6 | 42 | 24 | 225 |
| 205008 | 8 | 52 | 32 | 400 |
| 205010 | 10 | 65 | 40 | 630 |
| 205012 | 12 | 78 | 48 | 940 |
| 205013 | 13 | 82 | 52 | 1,000 |
| 205016 | 16 | 100 | 64 | 1,600 |
steel, H.D.G. available for electric galvanized chain
| Number | Size (mm) | Inner Length (mm) | Outer Width (mm) | Safe Working Load (kg) |
| 205803 | 3 | 26 | 12 | 55 |
| 205804 | 4 | 32 | 16 | 100 |
| 205805 | 5 | 35 | 20 | 160 |
| 205806 | 6 | 42 | 24 | 225 |
| 205808 | 8 | 52 | 32 | 400 |
| 205810 | 10 | 65 | 40 | 630 |
| 205812 | 12 | 78 | 48 | 940 |
| 205813 | 13 | 82 | 52 | 1,000 |
| 205816 | 16 | 100 | 64 | 1,600 |
steel, Elec. Galv
| Number | Size (mm) | Inner Length (mm) | Outer Width (mm) | Breaking Load (kg) |
| 206614 | 1.4 | 20 | 6.5 | 16 |
| 206616 | 1.6 | 23 | 7.0 | 22 |
| 206618 | 1.8 | 26.5 | 8.0 | 30 |
| 206620 | 2.0 | 28 | 9.0 | 40 |
| 206622 | 2.2 | 31 | 10.0 | 50 |
| 206625 | 2.5 | 35 | 11.0 | 70 |
| 206628 | 2.8 | 39 | 12.5 | 90 |
| 206631 | 3.1 | 41 | 14.0 | 120 |
| 206634 | 3.4 | 44 | 15.5 | 140 |
| 206638 | 3.8 | 46 | 17.0 | 160 |
| 206642 | 4.2 | 52 | 19.0 | 170 |
| 206646 | 4.6 | 58 | 20.5 | 180 |
| 206650 | 5.0 | 60 | 22.5 | 190 |
Find more HIGRACE stainless steel hardware solutions to complete your marine, rigging, fastening, and industrial sourcing needs.
