HIGRACE supplies marine anchoring and docking hardware, including anchors, chains, deck fittings, and mooring hardware, for distributors, boat builders, and marine hardware importers.

Euro. Comm. Thimble

stainless steel

Get a Quote
Get a Quote
Number for SS316 Number for SS304 For Wire Dia. (mm) Inner Width (mm) Inner Length (mm)
141002 141202 2 7 10
141003 141203 3 10 17
141004 141204 4 11 18
141005 141205 5 13 20
141006 141206 6 15 25
141008 141208 8 18 32
141010 141210 10 23 41
141012 141212 12 27 48
141014 141214 14 34 53
141016 141216 16 36 57
141018 141218 18 40 67
141020 141220 20 45 75
141022 141222 22 52 84
141024 141224 24 56 96

Euro. Comm. Thimble

carbon steel

Get a Quote
Get a Quote
Number for E.G. Number for H.D.G. For Wire Dia. (mm) Inner Width (mm) Inner Length (mm)
141603 141803 3 11 16
141604 141804 4 16 22
141605 141805 5 19 26
141606 141806 6 22 32
141607 141807 7 24 34
141608 141808 8 29 38
141610 141810 10 35 48
141612 141812 12 40 57
141614 141814 14 42 60
141616 141816 16 45 67
141618 141818 18 51 76
141620 141820 20 54 83
141622 141822 22 64 88
141624 141824 24 68 102

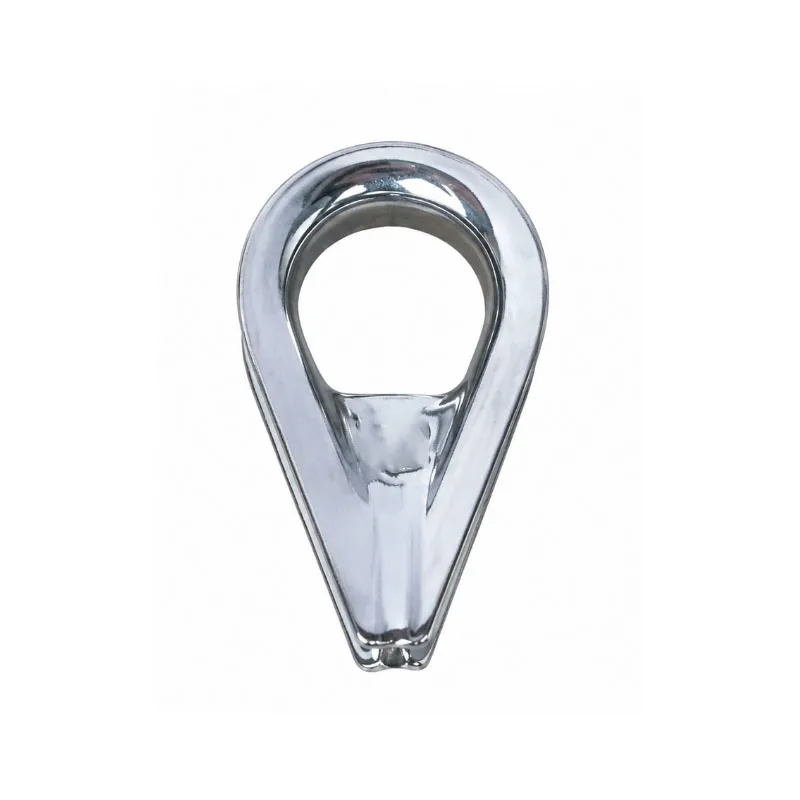

Euro. Thimble with welded stud

stainless steel

Get a Quote
Get a Quote
Number for SS316 Number for SS304 For Wire Dia. (mm) Inner Width (mm) Inner Length (mm)
142002 142202 2 7 10
142003 142203 3 10 17
142004 142204 4 11 18
142005 142205 5 13 20
142006 142206 6 15 25
142008 142208 8 18 32
142010 142210 10 23 41
142012 142212 12 27 48
142014 142214 14 34 53
142016 142216 16 36 57
142018 142218 18 40 67
142020 142220 20 45 75
142022 142222 22 52 84
142024 142224 24 56 96

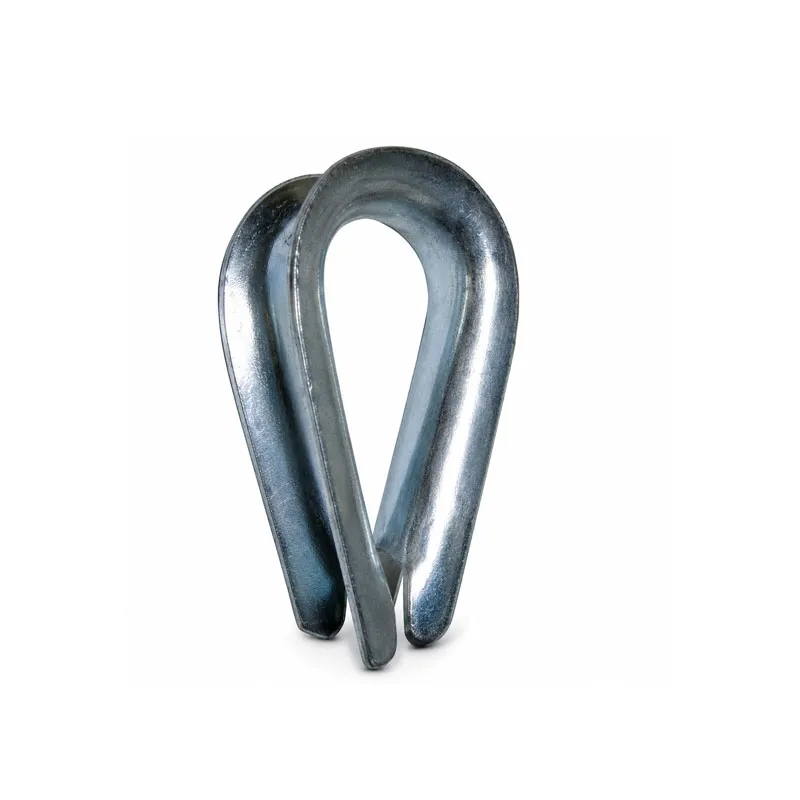

Thimble DIN6899 A

carbon steel

Get a Quote
Get a Quote
Number for E.G. Number for H.D.G. For Wire Dia. (mm) Inner Width (mm) Inner Length (mm)
146603 146803 2.5×3 10 21
146604 146804 3×4 12 26
146605 146805 4×5 13 28
146606 146806 5×6 14 30
146607 146807 6×7 15 33
146608 146808 7×8 16 35
146610 146810 8×10 19 40
146612 146812 10×12 24 50
146614 146814 12×14 28 60
146616 146816 14×16 32 70
146618 146818 16×18 35 78
146620 146820 18×20 40 86
146622 146822 20×22 44 95
146624 146824 22×24 48 102

Thimble DIN6899 B

carbon steel

Get a Quote
Get a Quote
Number for E.G. Number for H.D.G. For Wire Dia. (mm) Inner Width (mm) Inner Length (mm)
142603 142803 2.5×3 13 21
142604 142804 3×4 14 23
142605 142805 4×5 16 25
142606 142806 5×6 18 28
142607 142807 6×7 20 32
142608 142808 7×8 24 38
142610 142810 8×10 28 45
142612 142812 10×12 32 51
142614 142814 12×14 36 58
142616 142816 14×16 40 64
142618 142818 16×18 45 72
142620 142820 18×20 50 80
142622 142822 20×22 56 90
142624 142824 22×24 62 99

US Thimble Light G-411

stainless steel

Get a Quote
Get a Quote
Number for SS316 Number for SS304 For Wire Dia. (inch) Inner Width (mm) Inner Length (mm)
143003 143203 1/8 16 30
143005 143205 3/16 17 32
143006 143206 1/4 18 33
143008 143208 5/16 20 38
143010 143210 3/8 24 42
143012 143212 1/2 29 48
143014 143214 9/16 32 54
143016 143216 5/8 35 57
143020 143220 3/4 41 64
143022 143222 7/8 48 89
143024 143224 1 56 108

US Thimble Light G-411

carbon steel

Get a Quote
Get a Quote
Number for E.G. Number for H.D.G. For Wire Dia. (inch) Inner Width (mm) Inner Length (mm)
143603 143803 1/8 16 30
143605 143805 3/16 17 32
143606 143806 1/4 18 33
143608 143808 5/16 20 38
143610 143810 3/8 24 42
143612 143812 1/2 29 48
143616 143816 5/8 35 57
143620 143820 3/4 41 64
143622 143822 7/8 48 89
143625 143825 1 56 108
143630 143830 1-1/8 64 114

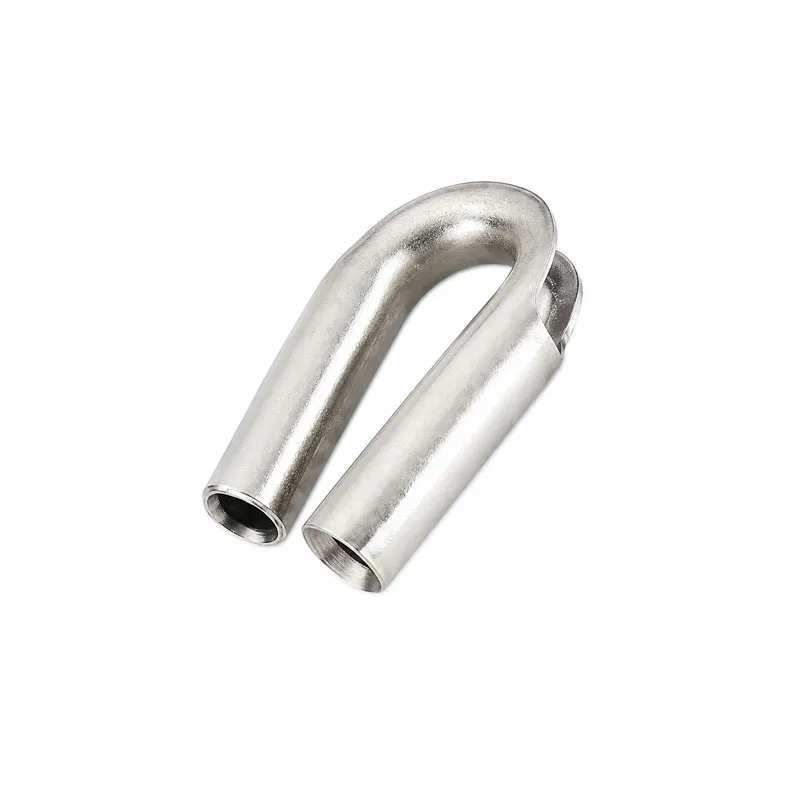

Tube Thimble

marine grade / rust proof / corrosion resistant/stainless steel A4 / SS316 / AISI316

Get a Quote
Get a Quote
Number For Rope Dia. (mm) Tube Inner Dia. (mm) Inner Width (mm) Length (mm)
145010 10 12 23 90
145012 12 15 27 105
145014 14 17 27 115
145016 16 19 32 120
145018 18 22 35 140
145022 22 25 45 180
145025 25 30 47 195
145032 32 35 60 215
145038 38 40 70 260

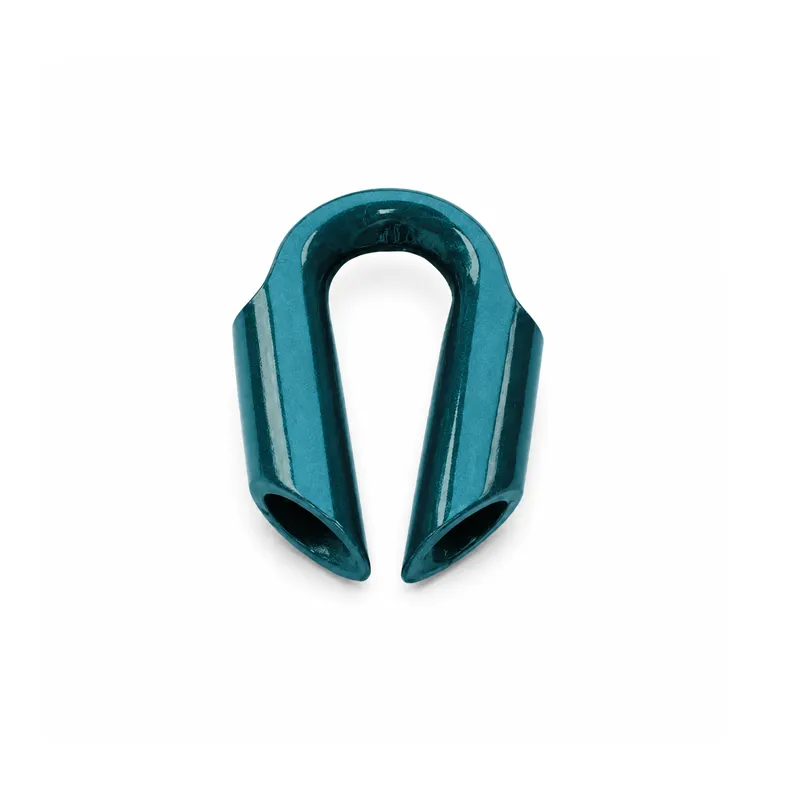

Tube Thimble

Tube Thimble

steel, painted

Get a Quote
Get a Quote
Number For Rope Dia. (mm) Tube Inner Dia. (mm) Inner Width (mm) Length (mm)
145410 10 12 23 90
145412 12 15 27 105
145414 14 17 27 115
145416 16 19 32 120
145420 20 22 35 140
145422 22 25 45 180
145425 25 28 47 195
145428 28 30 55 215
145432 32 35 60 235
145438 38 40 70 260

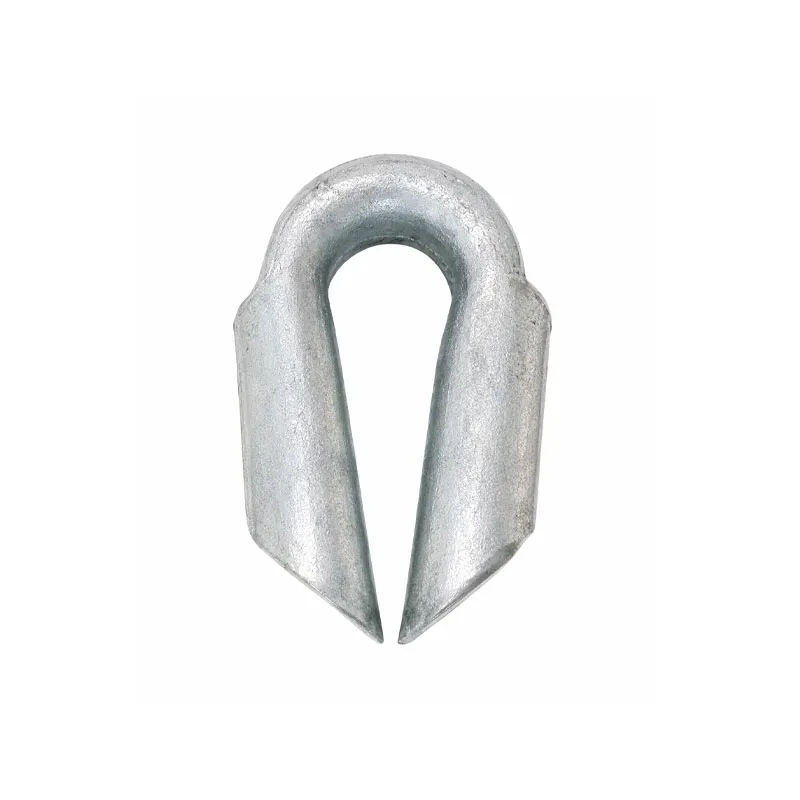

Tube Thimble

steel, H.D.G.

Get a Quote
Get a Quote
Number For Rope Dia. (mm) Tube Inner Dia. (mm) Inner Width (mm) Length (mm)
145810 10 12 23 90
145812 12 15 27 105
145814 14 17 27 115
145816 16 19 32 120
145820 20 22 35 140
145822 22 25 45 180
145825 25 28 47 195
145828 28 30 55 215
145832 32 35 60 235
145838 38 40 70 260
