HIGRACE supplies marine anchoring and docking hardware, including anchors, chains, deck fittings, and mooring hardware, for distributors, boat builders, and marine hardware importers.
body: painted red wheel: steel
| Number | Size (in) | For Rope Dia. (mm) | WLL (kgs) | Weight (kg) |
| 504003 | 3″ | 4–6 | 500 | 1.1 |
| 504004 | 4″ | 6–9 | 1000 | 2.1 |
| 504005 | 5″ | 8–12 | 1500 | 3.6 |
| 504006 | 6″ | 10–14 | 2000 | 5.5 |
| 504008 | 8″ | 14–16 | 3000 | 11.0 |
body: painted red wheel: steel
| Number | Size (in) | For Rope Dia. (mm) | WLL (kgs) | Weight (kg) |
| 504503 | 3″ | 4–6 | 500 | 1.10 |
| 504504 | 4″ | 6–9 | 1000 | 2.45 |
| 504505 | 5″ | 8–12 | 1500 | 4.20 |
| 504506 | 6″ | 10–14 | 2000 | 6.30 |
| 504508 | 8″ | 14–18 | 3000 | 11.0 |
hook: painted blue wheel: steel
| Number | Size (in) | For Rope Dia. (mm) | WLL (ton) | Weight (kg) |
| 508003 | 3″ | 10 | 2 | 2.26 |
| 508004 | 4-1/2″ | 12 | 4 | 5.76 |
| 508006 | 6″ | 16 | 6 | 12.0 |
| 508008 | 8″ | 16 | 6 | 15.0 |
| 508010 | 10″ | 20 | 8 | 19.0 |
| 508012 | 12″ | 20 | 8 | 22.0 |

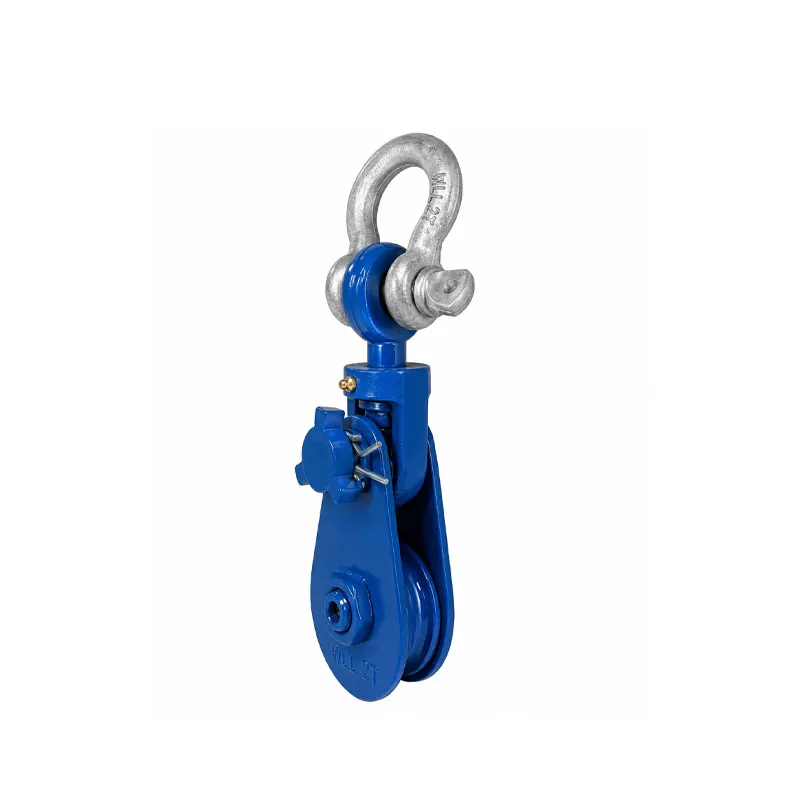

shackle: G-2130 painted blue wheel: stee
| Number | Size (in) | For Rope Dia. (mm) | WLL (lbs) | Weight (kg) |
| 508503 | 3″ | 10 | 2 | 1.80 |
| 508504 | 4-1/2″ | 12 | 4 | 6.26 |
| 508506 | 6″ | 16 | 6 | 12.5 |
| 508508 | 8″ | 16 | 6 | 16.3 |
| 508510 | 10″ | 20 | 8 | 18.5 |
| 508512 | 12″ | 20 | 8 | 22.5 |
Find more HIGRACE stainless steel hardware solutions to complete your marine, rigging, fastening, and industrial sourcing needs.
